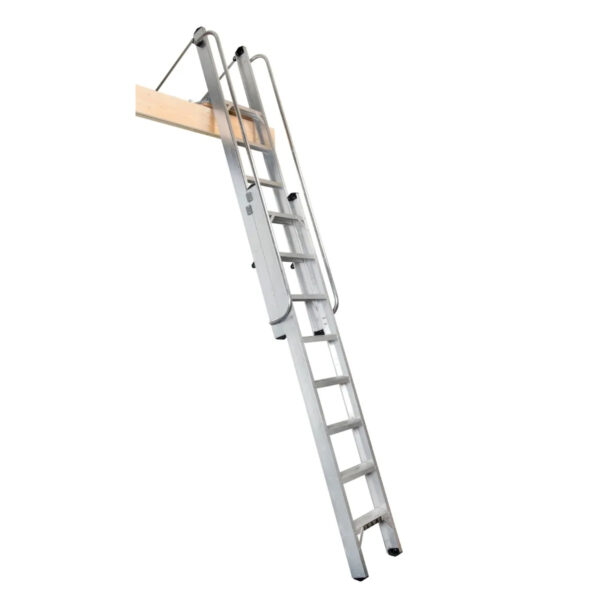

The heavy duty rated Aluminium Vertical Carriage loft ladder (VCL) is ideal for access through a vertical door, upward opening ceiling hatch or onto a platform / mezzanine floor. Note: The VCL loft ladder does not come supplied with a trapdoor / hatch.
  • High strength extruded aluminium construction.
  • Specially designed carriage board (MDF) mounted on nylon rollers enables unit to roll quietly clear of floor’s edge.
  • Suits floor to floor heights up to 3.21m.
  • Suits existing vertical loft hatch openings from 900mm (H) x 600mm (W).
  • Can also be used for access to a mezzanine floor application.
  • Suitable for domestic, commercial or industrial use.
  • Uses a spring counterbalanced system allowing for a smooth and safe deployment of the ladder.
  • Opening in the wall can be closed by a door (supplied by others) with a maximum thickness of 25mm.
  • Supplied with two metal handrails as standard.
  • Complete with operating pole and fittings.
ManufacturerLoft Centre
MaterialAluminium
Sections2
Minimum Floor Height2300mm
Maximum Floor Height3210mm
Minimum Opening Size900mm (H) x 600mm (W)
Ladder Width402mm
Ladder Width (Including Handrails)466mm
Useable Tread Width330mm
Ladder Tread Depth75mm
Minimum Storage Space (Length)2250mm
Loft Clearance Required (Height)1070mm
Max. Height of Ladder in stored position500mm
Max Load 150kg
HandrailYes
Hatch IncludedNo
